POF’s light-weight, 5.56mm-AR-15-sized 7.62mm rifle goes direct-impingement

Patriot Ordnance Factory introduced the Revolution a couple years ago with great success. Reliably putting .308 power into a .223 sized AR was impressive. Even using their short-stroked piston system it weighed in at a tad over 7-pounds, less than more than a few piston-driven AR-15s, let alone a typical AR-10. Overall length was very similar to an AR15 with the same size barrel, and their triple-port muzzle brake tamed recoil quite a bit. About as ambidextrous as an AR gets, ambi features included the charging handle, safety, and bolt and magazine releases. It was met with quite a bit of fanfare and overall it was very well received by .308 fans with the possible exception of the gas system; some just don’t like piston systems. So, there was a call for a DI (Direct Impingement) version, of which POF came through earlier this year with versions in both .308 Win. and 6.5 Creedmoor.

POF Revolution DI

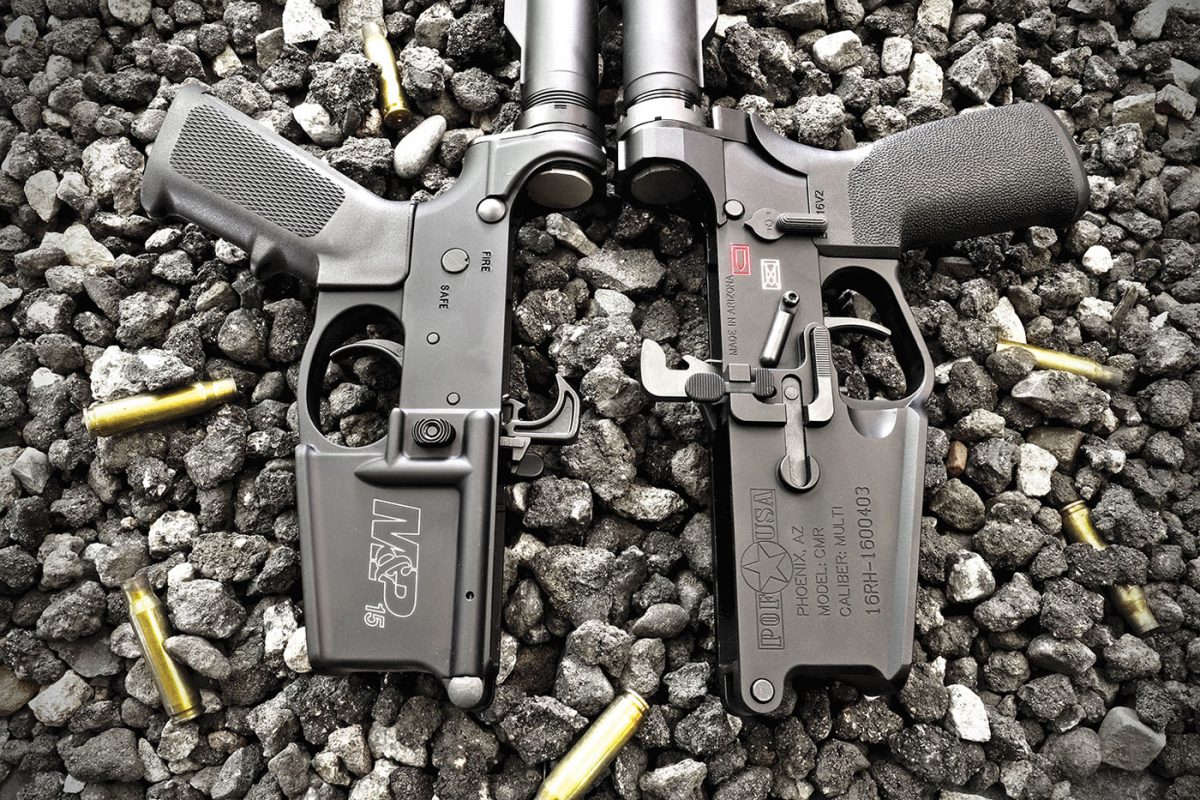

The overall size of the 7.62x51mm NATO-chambered Revolution’s receivers are arguably one of its most intriguing attributes. POF was ingeniously able to keep the package-size of the Revolution in line with a 5.56mm/.223 Rem chambered AR-15 rifles, essentially changing the status que size of .30-cal. AR’s

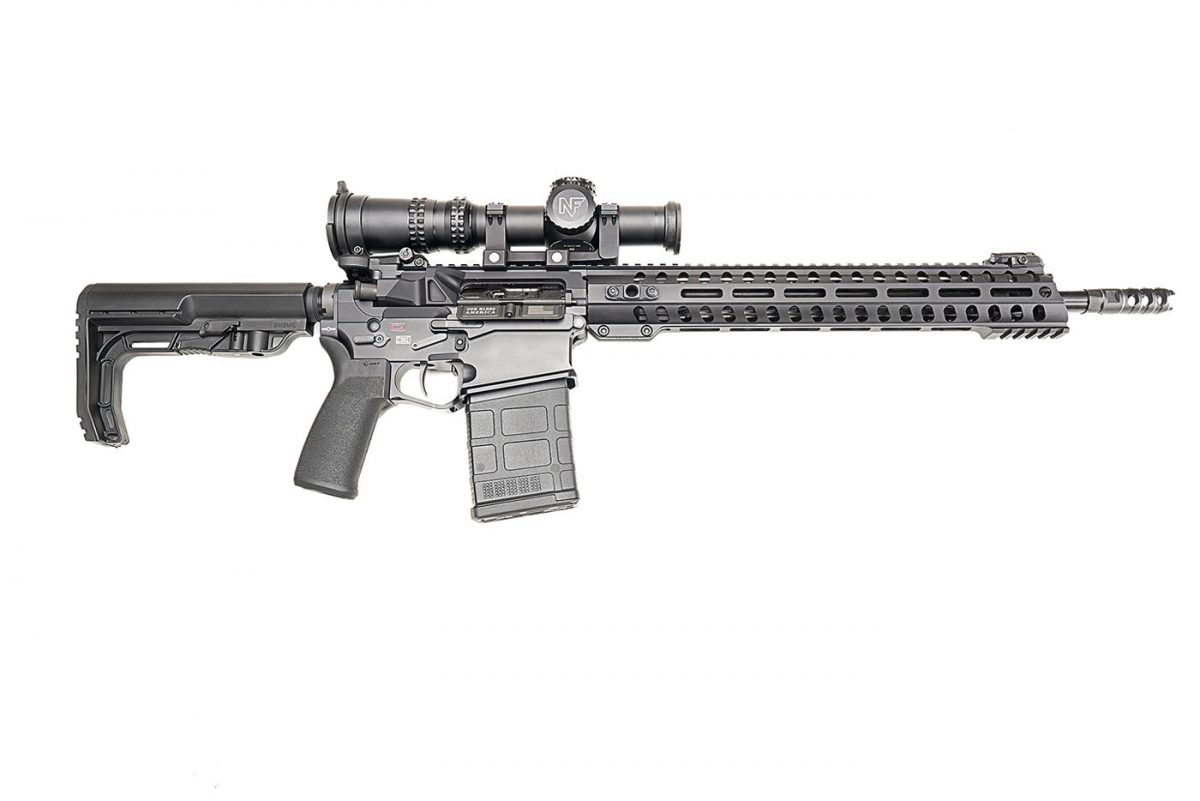

While the biggest change in the new DI Revolution is the gas system, the rifle in general is well refined. Very clean with nice lines and solid fit, the Revolution DI with a 16.5-inch” .308 barrel also shed a bit of weight, coming in at under seven pounds (6.81). The Tomahawk ambidextrous charging handle remains, along with the ambi safety, bolt, and magazine release of the Gen 4 Billet lower. Using the DI system trimmed the hand guard down a bit as well as the rail height. At the same length, it looks just like a standard AR-15—it just happens to shoot .308 Winchester. The hand guard is M-LOK compatible and also very strong and light. The top rail is continuous in contrast to the piston version. The trigger guard is extended and houses a POF drop in 4.5-pound single-stage trigger using KNS anti-walk pins. The buttstock and pistol grip are from Mission First Tactical, and the Minimalist stock is riding on an anti-tilt, 6-position buffer tube. The buffer and spring are both standard carbine. The nitrided bolt-carrier group includes POF’s E2 dual extractors. The 16.5-inch match grade barrel is also Nitride coated, heat treated and capped with their triple-port muzzle brake. The gas block is POF’s Dictator adjustable—possibly the strongest and longest-lasting adjustable gas block on the market today. It ships with one Magpul 20-round PMAG in a hard case.

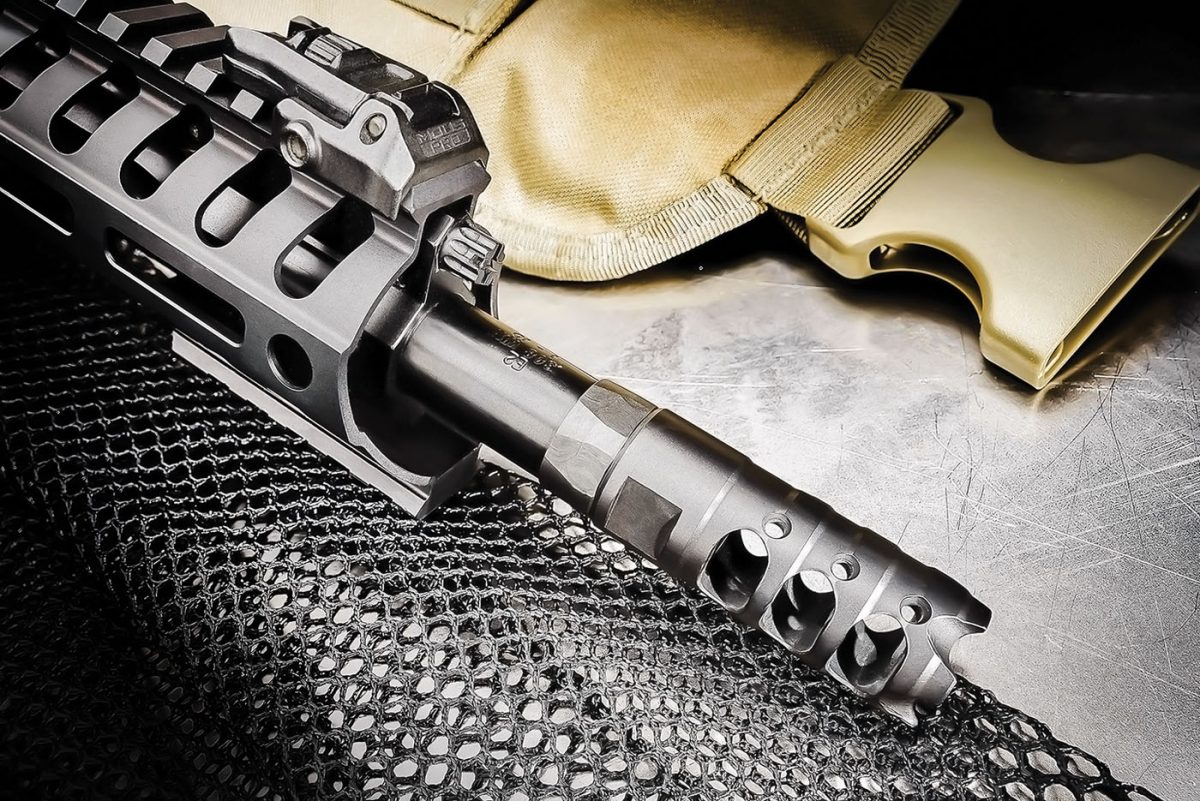

The fluted, nitride heat-treated chrome-moly 16.5-inch barrel is topped with a very effective Triple-Port compensator. Poking out of the front of the handguard is the 9-position knob of the adjustable Dictator gas block, letting you tailor operation to ammunition and/or a sound suppressor.

Leupold’s VX6 HD 1-6 power was mounted in a Spuhr Cantilever mount for testing. Spuhr mounts are strong, light, and repeatable with the ability to attach a red-dot sight  (RDS). Aimpoint’s T2 is about perfect for a rifle since it will hold up to just about anything. Spuhr’s mount places the RDS perfectly for proper aiming. Zeroed at 25 yards it takes care of the close work, while the Leupold was zeroed at 200 meters. This zero works very well with the BDC and makes it a point and shoot affair out to 300 yards.
